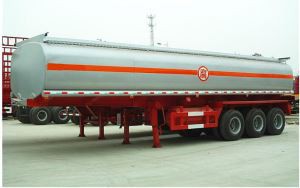

40000L fuel tank trailer, 3*13T Fuwa/BPW axles, machnical or air suspension, Q235A for tank body, 12R22.5 double star tire, 3 pcs of 4" disc valves.
Fuel Tank Trailer Features:
1. The fuel tanker's body and chassis both are made by high-tensile steel
2. The axle adopt the famous brand such as BPW,FUWA,SAF,Lt.
3. The landing gear use JOST,FUWA or SAF-HOLLAND,Chinese brand spare parts is available also.
4. The steel or aluminium manhole is available,and both hand-control and pneumatic control valve are optional,can load with oil,diesel or petrol
5. Tank boy, Tank Chassis or trailer parts can be designed according to your requirements, and we can also provided in SKD.
|Tank body||Q235A/5mm steel sheet|
|End plate||Q235A/6mm .ball shape|
|Axle||3*13T FUWA brand axle|
|Suspension||Mechanical or Air suspension|
|Leaf spring||Leaf spring 10pcs*90*13mm|
|Manhole cover||3 sets of 500mm manhole, with breath valve|
|Tire||12R22.5 double star brand 12pcs|
|Wheel rim||9.0-22.5 better brand 12pcs|
|Discharge valve||4" disc valve 3pcs|
|Discharge pipe||4" seamless steel tube|
|Kingpin||JOST brand 2"/50mm or "3.5"/90mm|
|Landing gear||JOST brand two-speed, manual operating ,heavy duty landing gear 28T|
|Braking system||WABCO RE6 relay valve ;T30/30 spring brake chamber;40L air tanks|
|Light||LED 8 side lights and 2 rear lights 2 width lamp|
|Painting||Complete chassis sand blasting to clean rust ,1coat of anticorrosive prime,2coats of final paint|
|Accessories||One standard tool box one spare tire carrier one crank one shaft head wrench four side light two rear light|
Machinery and equipment
Packing & Shipping
WH or per your request
Bulk carrier or RORO or Container
Tianjin port, China
TT or LC at sight
Place of Origin:
Shandong, China (Mainland)
